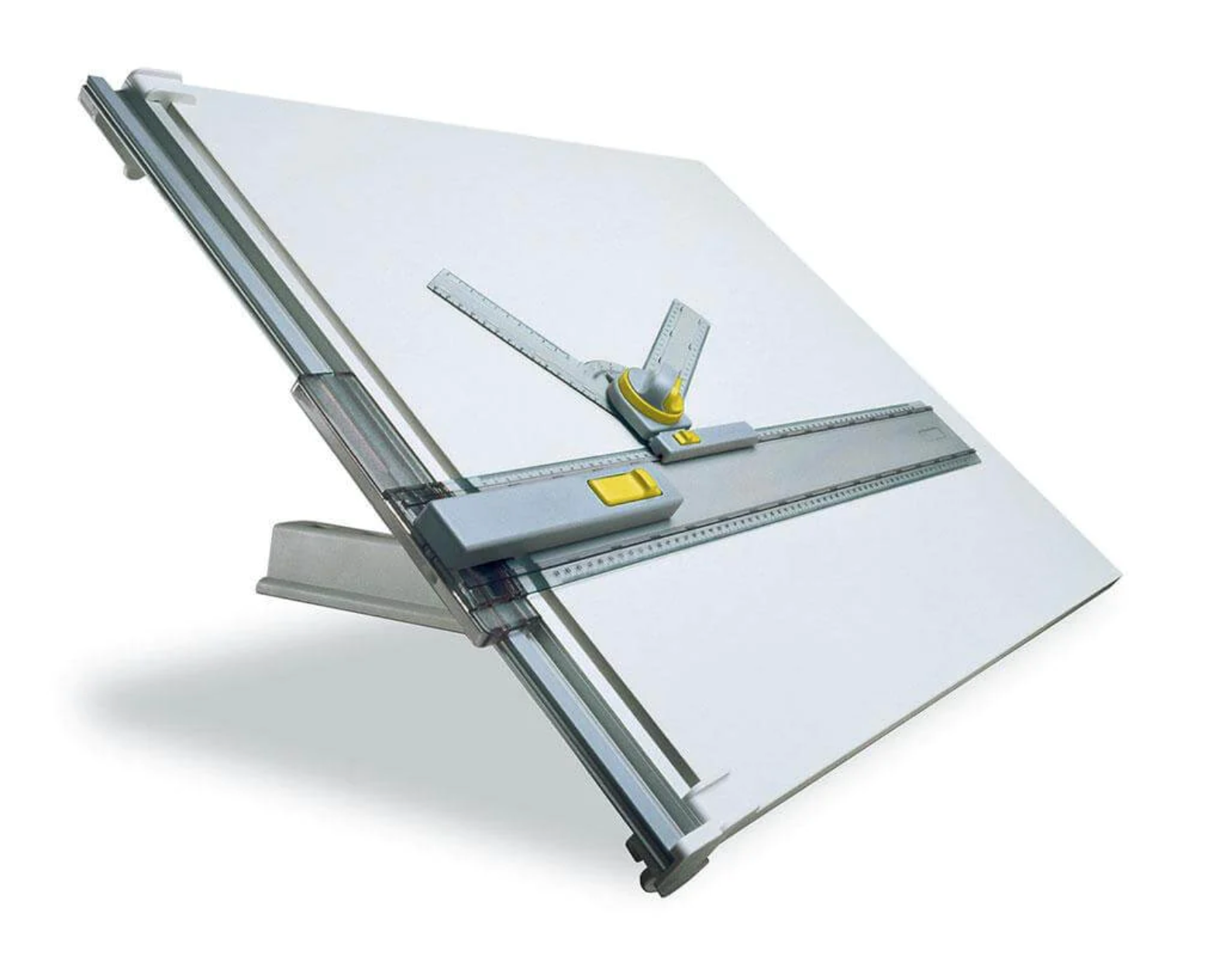

Aristo Table Top Studio Drawing Board A1

Save RRP: £57

The ARISTO drafting machine A1 complete, i. e. inclusive drafting table A1, offers the ideal equipment for engineers of tomorrow as well as for professionals.
Tilters offer 4 different steps (0° / 15° / 30° / 40°) of inclination of the plastic-coated drafting table, caring for comfortable ergonomic working.
The drafting machine combines a high-precision aluminium guide track, a parallel straight edge and the drawing head AR7094. With two special clamps it can be quickly fixed on tables up to 30mm thickness.
The ball-bearing guidance of the parallel straight edge makes it very smooth. Stop-and-go and free-running mechanism offer the possibility to fix the straight edge while drawing.
The ARISTO drawing head made of transparent plastic, for angles between 0° and 90°, runs on the straight edge and is equipped with two legs (scale 15cm and 15cm), a blocking mechanism for firm adjustment of angles after 15° each and a fine adjustment for any angle. With the break mechanism you can lock in the position on the straight edge. Ink knobs on the lower side guarantee proper drawing.
Product features
Drafting machine and drafting table for paper size A1 (board size 700 x1.000mm)
Tilters for 4 steps (0° / 15° / 30° / 40°) with antislip protection
Ball-bearing parallel straight edge with stop-and-go and free-running mechanism
Inclusive drawing head
